SAP Tech Bytes: btp CLI - autocompletion

[qmacro]

Get the btp CLI to help you with command autocompletion.

This is a follow-on post from the previous one: SAP Tech Bytes: btp CLI - managing configuration and starts where we left off there, with you logged in.

Actions, groups, objects and the command structure

There are many different types of resources that you might want to manage on the SAP Business Technology Platform (BTP). Moreover, there are different actions that you might want to take on each. This is why the command structure that the btp CLI supports is how it is:

Usage: btp [OPTIONS] ACTION [GROUP/OBJECT] [PARAMS]

The BTP resources are the OBJECTs and these are organised into different GROUPs. You perform ACTIONs on these, possibly supplying relevant information via PARAMS. There are also general OPTIONS that are not ACTION or GROUP/OBJECT specific.

Here's a shortened excerpt from the output shown when invoking the --help option, i.e. btp --help:

Actions for accounts/available-environment

  list                  Get all available environments for a subaccount

  get                   Get details about an available environment for a subaccount



Actions for accounts/directory

  get                   Get details about a directory and its contents

  create                Create a directory

  update                Update a directory

  delete                Delete a directory

  enable                Change the set of enabled features for a directory



Actions for accounts/subaccount

  list                  List all subaccounts in a global account

  get                   Get details about a subaccount

  create                Create a subaccount

  update                Update a subaccount

  delete                Delete a subaccount

  move                  Move a subaccount

  subscribe             Subscribe to an application from a subaccount

  unsubscribe           Unsubscribe an application from a subaccount



Actions for security/app

  list                  List all apps

  get                   Get details about a specific app



...

The relationship between ACTION (get, list, update, etc) and GROUP/OBJECT (accounts/directory, security/app, etc) can be seen quite nicely here.

Enabling autocomplete

With the btp CLI you can perform different actions on a wide range of objects, so much so that it can be a little overwhelming at first. This is where autocompletion comes in. You can use the Tab key to ask btp to make suggestions, based on what you've typed in so far (which could be nothing at all).

As well as the main actions, there are some general actions too - you've used a couple already: login and target. Turning on autocompletion is achieved with another of these general actions.

Do it now:

btp enable autocomplete bash

The btp CLI supports autocompletion for different shells: Bash, Zsh and PowerShell. The shell you're running in your SAP Business Application Studio dev space is Bash; this is why you need to specify bash as a parameter.

Here's what happens:

This will install the autocomplete plugin script for bash

to /home/user/.config/btp/autocomplete/scripts.

Do you want to continue? [no]>yes

Which RCFile should be used for the installation?

1: /home/user/.bash_profile

2: /home/user/.bashrc

3: /home/user/.profile

4: Custom

Enter option>2

Autocomplete script for bash has been installed

to /home/user/.config/btp/autocomplete/scripts.

You must start a new terminal session to activate the installed script.



Tips:

  Use the TAB key to complete commands and provide valid command actions, options, and parameters.

  Use the TAB key to cycle through the suggestion lists and the ENTER key to select.



OK

There are a few things worthy of note here:

• the autocomplete mechanism is installed into a subdirectory autocomplete/ within the configuration directory we specified for the btp CLI; this keeps everything nicely together


• I chose option 2, i.e. /home/user/.bashrc as that is the file we've been using to maintain and customise our shell environment


• There are useful tips at the end of the output on how to use the autocomplete feature

Have you ever wondered why the .bashrc file name ends in rc and what it means? Did you spot the reference to RCFile in the output? Let me know in the comments.

The installed autocomplete mechanism in .config/btp/autocomplete/ needs to be activated when the shell session starts; if you look into your .bashrc file now, you'll see a new line has been appended, right after the two we recently added. The line looks like this (with some whitespace added for readability):

SAP_BTP_CLI_AUTOCOMPLETE="/home/user/.config/btp/autocomplete/scripts/sapbtpcli-autocomplete.plugin.sh" \

  && source $SAP_BTP_CLI_AUTOCOMPLETE \

  && bind 'set show-all-if-ambiguous on' \

  && bind 'set show-mode-in-prompt on'

This just sets another btp CLI related environment variable pointing to the autocomplete script, runs that script, and sets a couple of readline options:

• show-all-if-ambiguous will list possible matches immediately


• show-mode-in-prompt adds a little indicator to the prompt to show the editing mode (we'll see this shortly)

readline is Bash's command-line editing interface.

As instructed, start a new terminal session to have the .bashrc re-sourced, and you're ready. Note that the shell prompt now has an @ symbol at the front:

@user: user $

This is the result of turning on show-mode-in-prompt; personally, I don't like this so I remove that last bind statement from my .bashrc. You can do the same, or leave it as it is.

Enjoying the comfort of autocomplete

Now you're ready to try the autocomplete features out. First, enter btp (including a space, so that the shell won't try to autocomplete the "btp" command itself), and then hit the Tab key; you should see something like this:

@user: user $ btp <tab>

add          enable       register     unassign     update

assign       get          remove       unregister

create       list         share        unshare

delete       move         subscribe    unsubscribe

You'll recognise these as all of the possible actions that btp understands.

Next, continue with l <tab>:

@user: user $ btp l<tab>

which should then autocomplete to list and hit <tab> once more, and you should see the objects, by group, which can be listed:

@user: user $ btp list

accounts/assigned-entitlements  security/role

accounts/available-environment  security/role-collection

accounts/available-region       security/user

accounts/custom-property        services/binding

accounts/entitlement            services/broker

accounts/environment-instance   services/instance

accounts/resource-provider      services/offering

accounts/subaccount             services/plan

accounts/subscription           services/platform

security/app

Note that you haven't pressed Enter yet, at all.

Nice! Let's say we want to list the entitlements for our trial subaccount (remember, this is already pre-selected via our use of target in SAP Tech Bytes: btp CLI - logging in). So continue on the same line with a<tab>e<tab> which will narrow things down to the accounts group and the objects beginning with e:

@user: user $ btp list

accounts/entitlement           accounts/environment-instance

Close in on your target by adding a final t (note that the autocomplete has autocompleted as far as it can by adding an n) to disambiguate entitlement from environment-instance, and then hit <tab> one more time to autocomplete to what we're looking for:

@user: user $ btp list accounts/entitlement



Showing entitlements for subaccount b8a33bf9-b155-4736-aadf-582dae8fd65a:



service name                         service plan       quota

customer-order-sourcing-app-trial    dev                1

saas-registry                        application        1

APPLICATION_RUNTIME                  MEMORY             4

alm-ts                               lite               1

sapappstudiotrial                    trial              1

business-rules                       lite               1

transport                            standard           1

personal-data-manager-service        standard           1

portal                               standard           100

...

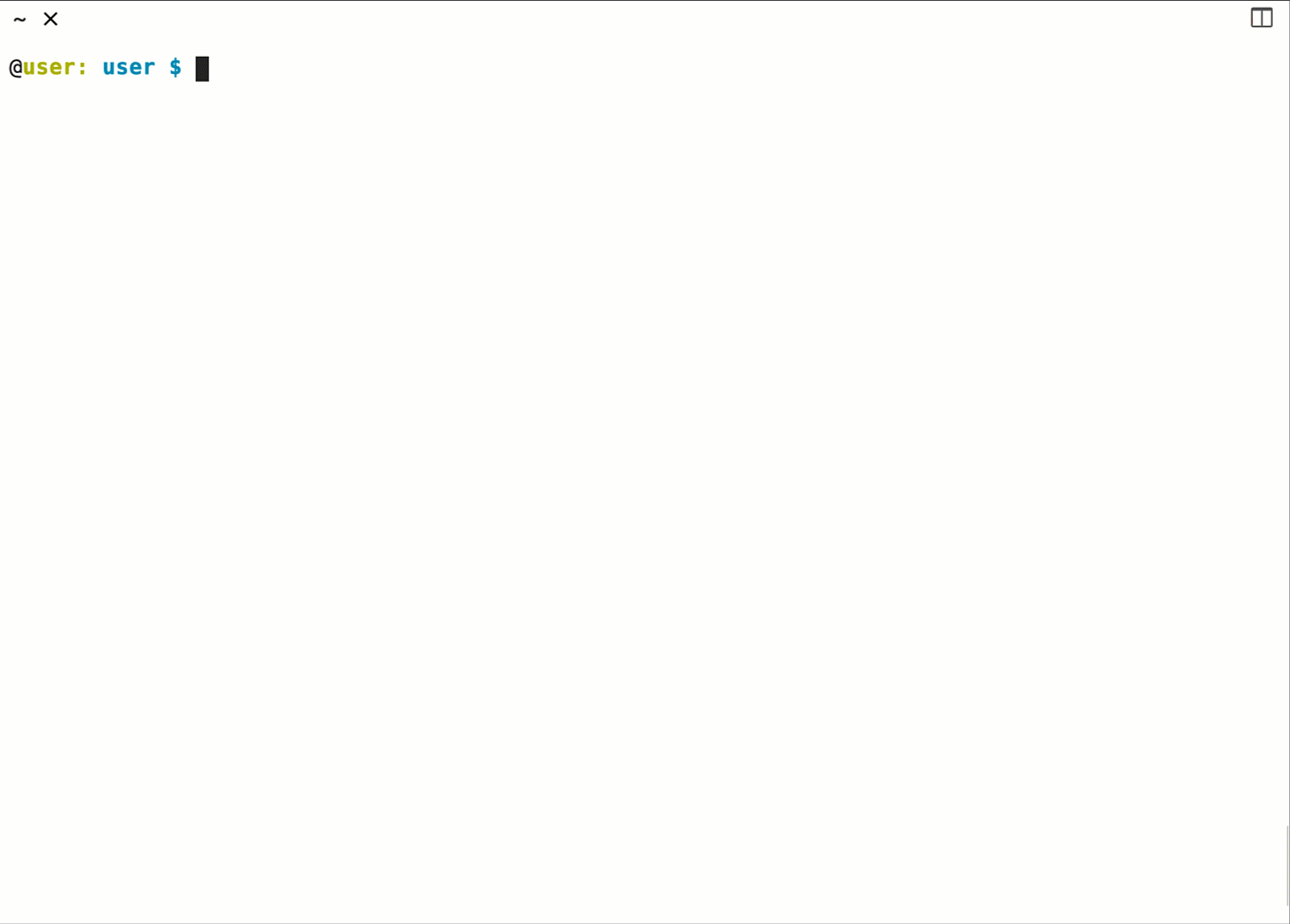

Now that's what I call working in comfort! Here it is in action:

The best thing to do here is to simply try the autocomplete feature out for yourself - it's easiest to learn about it by doing. And that's it for this post!

In the next post, we take a look at output, and alternative formats.

---

SAP Tech Bytes is an initiative to bring you bite-sized information on all manner of topics, in video and written format. Enjoy!
