Freight Unit not created in S/4HANA Embedded TM (1709)

[chris_gr_25]

Hello TM Community,

we are facing the issue, that a freight unit is not created out of a delivery.

As a reference we have a system (also S/4HANA Embedded TM 1709) with exactly the same Customizing & Configuration concerning SCM-Basis & Delivery Integration. In this case, everything is working fine.

Meaning the following key configurations:

- Setup SCM Basis Customizing (logical system etc.)

- Setup Delivery Integration (control key for delivery, Integration Customizing including Mapping of logistics integration profile to shipping point/delivery type/ shipping condition)

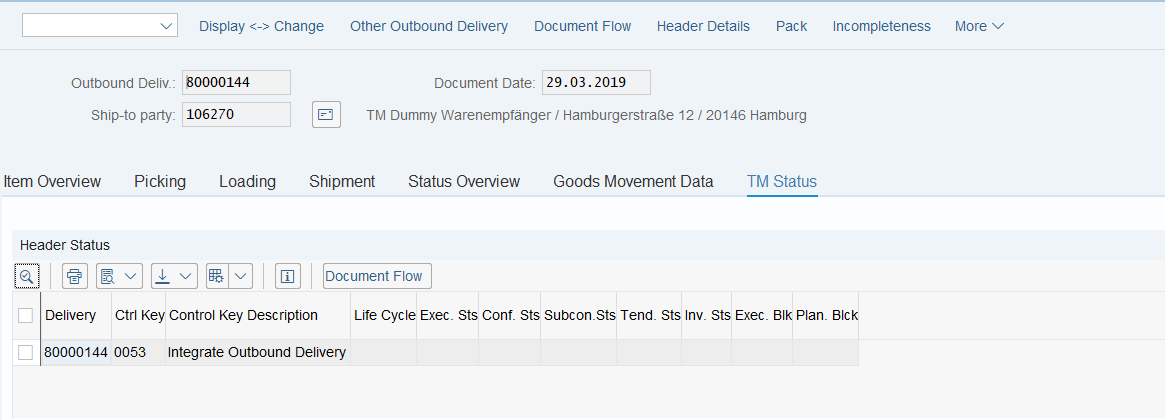

The Delivery has the right attributes meaning Shipping Point/Delivery Type and Shipping condition. A right integration customizing can be verified by the fact, that the delivery finds the right control key in the TM Status-Tab:

But nevertheless, a freight unit is not created. Furthermore, there's no Dump/Error Message. So no chance to get an insight, why the freight unit is not created.

I'd be very glad about any suggestions/assumptions on that mysterious issue.

Thanks a lot!

[former_member550338]

Hi Christoph,

Were you able to find out the reason ? I am facing same issue with 1909. Not sure why FU is not created even after the required setup.

Thanks and regards

Gopal

[Former Member]

Hello,

I am not sure if this has been resolved or not. In embedded version you need to create a profile for stating the freight unit building rule and assign that to integration of deliveries or orders.

Let me know if this helps.

[former_member317998]

Hello All,

When Freight Unit Building Rules is created in Fiori app you might have selected wrong document type. You document type should exist in the below SPRO path

Transportation Management->Planning->Freight Unit->Define Freight Unit Types

Regards
